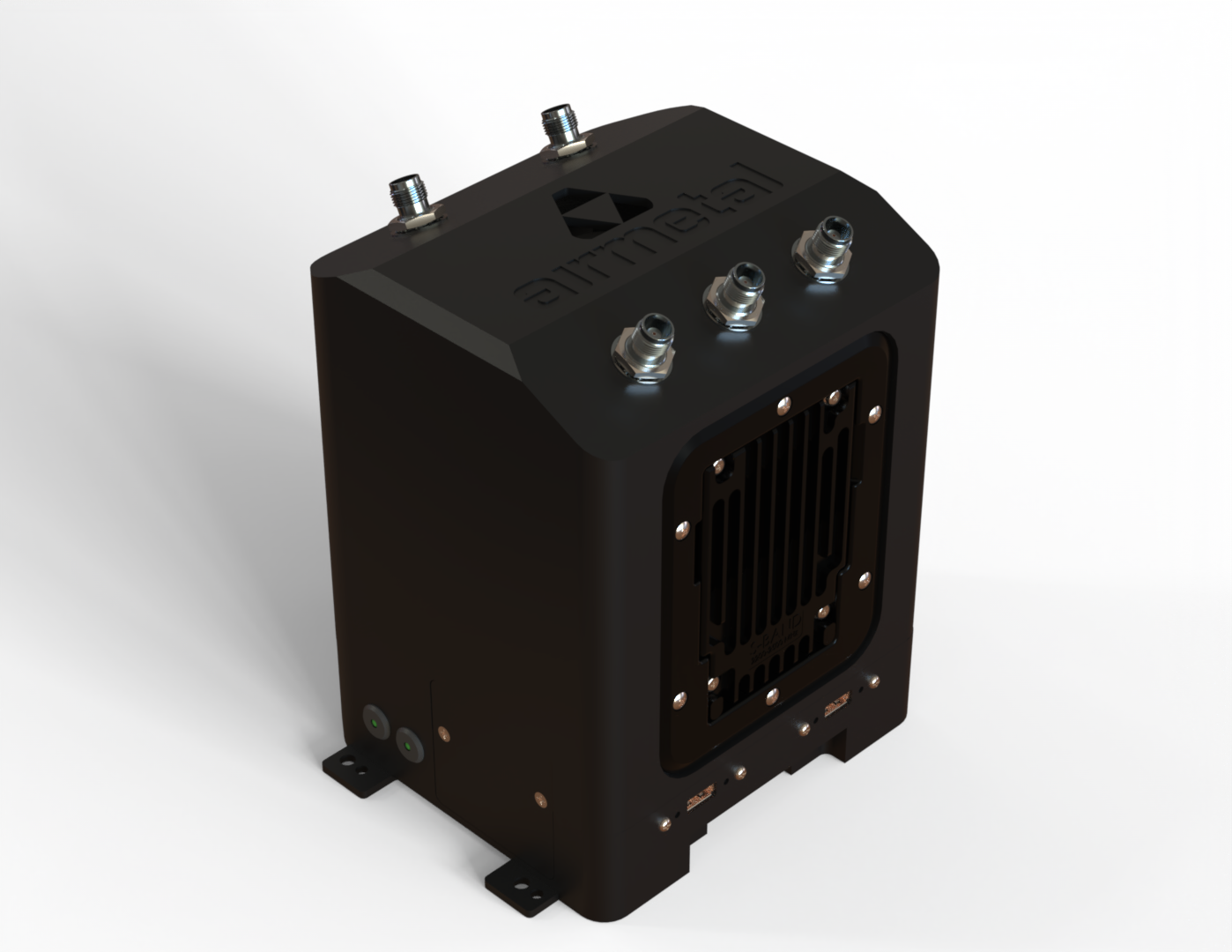

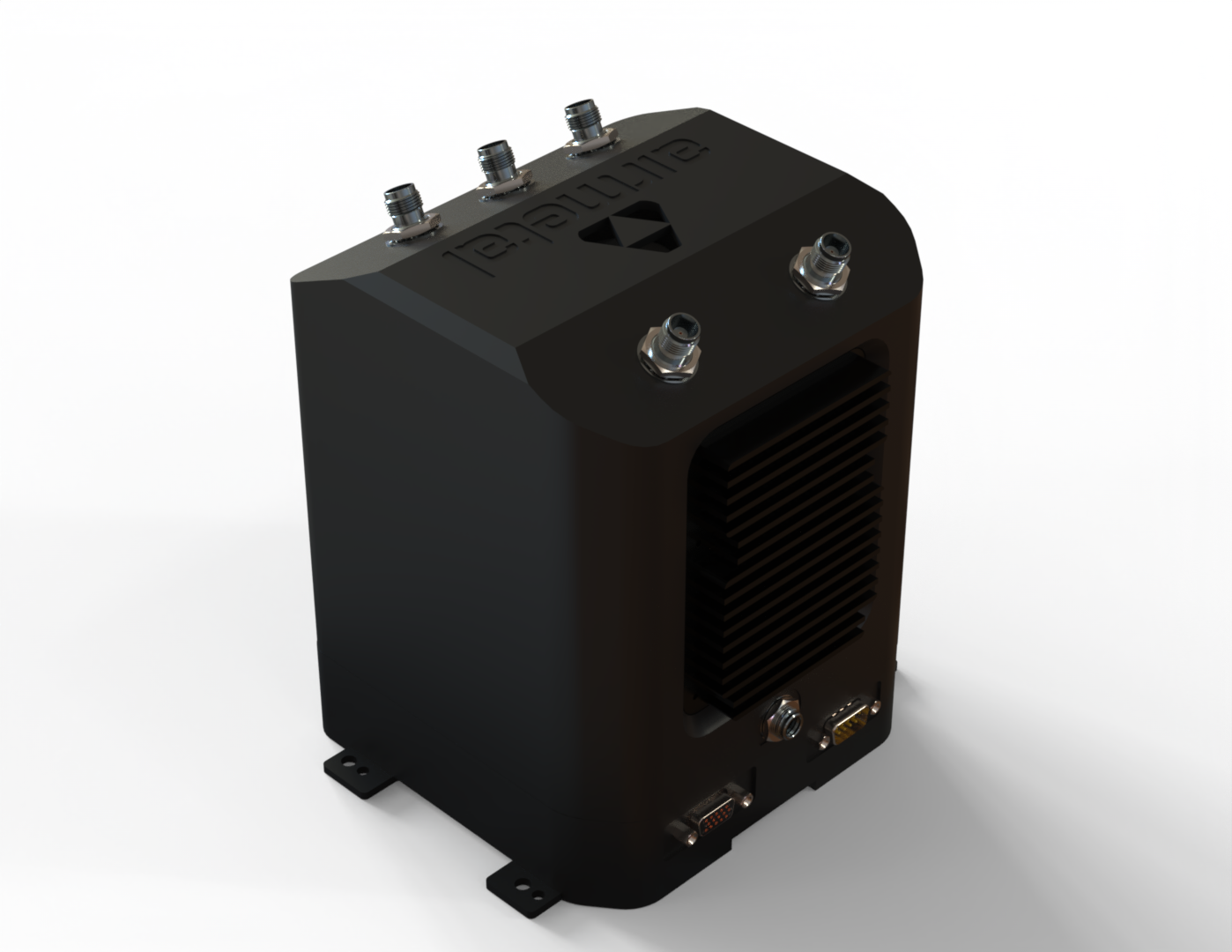

TacMesh-Bubble is the next evolution in robotic edge-processing payloads, featuring dual integrated tactical mesh radios on the NVIDIA Orin NX platform. Connect two radios from the same manufacturer — such as S-Band and C-Band bubbles — or mix radios from different manufacturers including any combination of Silvus, Trellisware, Persistent Systems, Domo Tactical, or Doodle Labs. With native ATAK integration, TacMesh-Bubble provides seamless Cursor-on-Target data sharing across the entire tactical network.
Hardware
Edge Processing
High-fidelity edge processing using an Orin NX based SBC
- NVIDIA Orin NX SBC
- 16GB Memory
- 1024 CUDA Core GPU
- 8-Core Cortex 64-bit CPU
- 8-Lane MIPI CSI-2
Dual Radio Features
- 2× Integrated Tactical Mesh Radios
- Same-manufacturer pairing — connect S-Band and C-Band bubbles from one vendor
- Cross-manufacturer support — any combination of Silvus, Trellisware, Persistent Systems, Domo Tactical, or Doodle Labs
- L, S & C-Band coverage
- 3–26 MHz channel bandwidths
- Up to 100Mbps throughput per radio
- Secure AES 128 & 256 encryption
- Self-forming and self-healing Mobile Ad-Hoc Network (MANET)
- 2×2 up to 3×3 MIMO for exceptional multipath RF performance
- Operating temperature range: −40°C to +85°C
- Up to 40dBm (10.0W) RF power per radio
ATAK Integration
- Native ATAK/CivTAK plugin support
- Seamless Cursor-on-Target (CoT) data sharing across the tactical network
- Real-time blue force tracking overlay
- Sensor data overlays directly on the ATAK map view
- Mission planning and route integration
- Compatible with TAK Server for centralized data management
Benefits
- Dual radios provide redundancy and simultaneous multi-band operations
- Mix-and-match radio manufacturers to match mission requirements
- Allows teleoperated control over the mesh network for superior range — operator can be miles away
- Operators and vehicles form a secure, private, isolated network that can be instantly deployed in any environment
- Powered by robot platform
- Supports commercial payloads including Lidar, Radiation/Chemical Detectors, IR Cameras with ability to produce overlayed 3D renderings in real-time
- Ability to run containerized applications for third-party inspection algorithms such as object or anomaly detection
- Designed for expandability to support emerging ground vehicles and sensors
Power
- Input Power: 12V
- Peak power consumption: 130W
- 10W Persistent Systems Wave Relay Radio — 61W
- 10W Silvus Streamcaster Radio — 24W
- NVIDIA Orin NX GPU at Max Load — 20W
- Leica BLK Lidar — 25W
- Radio values are instantaneous power draw at Peak Transmit; average consumption (duty cycle dependent) is much lower
- Any other radio combination will result in lower power consumption
Physical — Without Antennas
- Dimensions (L×W×H): 175mm × 142mm × 194mm
- Weight: 2.5 kg
Physical — With Antennas
- Dimensions (L×W×H): 175mm × 142mm × 360mm
- Weight: 3.05 kg
Use Cases
- For operators that need real-time situational awareness in hazardous environments or from long range with redundant comms
- For applications requiring simultaneous multi-band mesh networking across mixed vendor ecosystems
- For organizations requiring ATAK-integrated robotic platforms for coordinated tactical operations
- For agencies that need real-time sensor fusion overlaid on tactical map views
